Pro Line Ultra Series Commercial Reverse Osmosis Systems

The Good Water Warehouse Inc. Ultra-Series Reverse Osmosis Systems, are state-of-the-art, versatile systems for treating municipal and well water supplies. Ultra Systems range in size from 2,600 to 5,200 gallons per day. The Ultra-Series RO systems have minimal energy consumption, low maintenance and excellent operating costs. The Good Water Warehouse Ultra Commercial RO systems, made in Calgary Canada, are The Right Choice!

Big on standard features, yet compact, the Ultra-Series features a robust design that allows for versatility in the event of feed water quality and temperature variations. All systems come standard with Ultra Low Energy Membranes, and offer high rejection and flow rates for quality system performance. These Ultra Low Energy Units, feature ½ HP or ¾ HP multi-stage booster pumps with stainless steel bodies, for Ultra performance and corrosion resistance.

All models are equipped with the iControls™ RO System Controller, for precise control of auto-flush options, operation indication, pre-treatment and storage tank status, & much much more!

Basic Model Features:
• Franklin BT4 Series Multi-Stage Pumps
• Motor Thermal Overload Protection
• Suez AK-90LE Ultra Low Energy Membrane Elements
• Stainless Steel Membrane Housings
• 5 Micron Sediment Filter Cartridge
• Pentek 20” Big Blue Filter Housing
• Permeate Flow Meter
• Concentrate Flow Meter with Adjustable Needle Valve
• Recycle Flow Meter with Adjustable Needle Valve
• Low Pressure Switch
• Pump Operating Pressure Gauge
• Pre-Filter In/Out Pressure Gauge
• Product Water Check Valve
• Pretreatment Lockout

Deluxe Model Upgraded Features:
• Auto-Flush Solenoid Valve & Multiple Programming
• Dual Probe TDS Meter
• Powder-Coated Aluminum Frame
• Codeline Fiberglass Membrane Housings

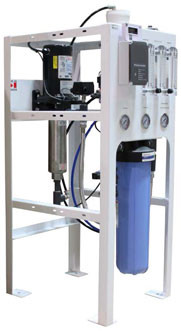

Ultra-2600-D

Pro Line Ultra Series
Description Part #
2600 GPD; 110V; BASIC ULTRA LOW ENERGY; COMMERCIAL RO ULTRA-2600
2600 GPD; 110V; DELUXE ULTRA LOW ENERGY; COMMERCIAL RO ULTRA-2600-D
5200 GPD; 110V; BASIC ULTRA LOW ENERGY; COMMERCIAL RO ULTRA-5200B
5200 GPD; 110V; DELUXE ULTRA LOW ENERGY; COMMERCIAL RO ULTRA-5200-D

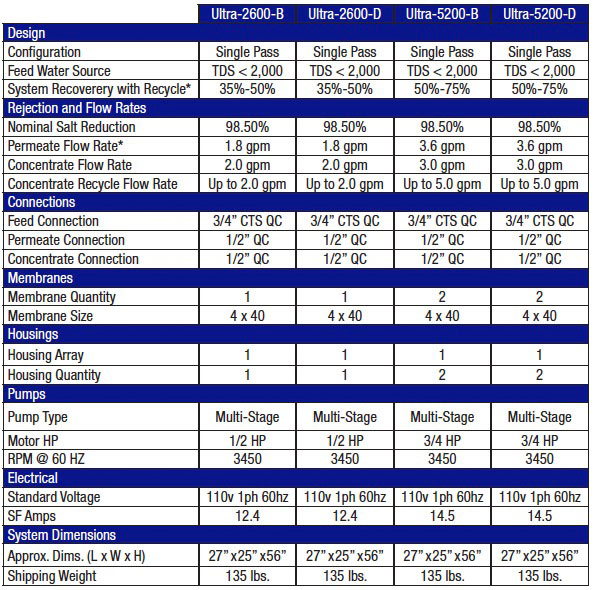

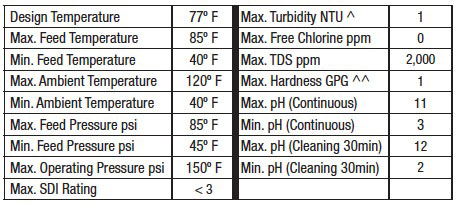

Pro Line Ultra Series Spec Sheet


* Product flow and recovery rates are based on feed-water condition of 1,000 ppm of TDS @ 77F / 25C. Treatment ability of the RO System is dependent on feed water quality. Higher TDS and/or lower temperatures will reduce product flow. Performance projections should be run for each installation.
