Valumax™ Fleck Backwashing Filter Systems
• Filter media selection is based on application.
• Media data sheets are available through customer service if required.
• Backwashing filters shown represent common sizes and media choices.
• Other sizes and media selections are available.
NOTE:
• Install parts (bypass valve, yokes, drain fittings) are not included with units. These must be ordered separately and are listed at the end of this section.
• Backwash flow rates should be considered for drain pipe sizing and should typically be 3/4” OD or larger.
• Units up to 2 cubic feet (12” x 52” media tank) are shipped with media loaded. Larger systems have media packaged separately which must be loaded on site.

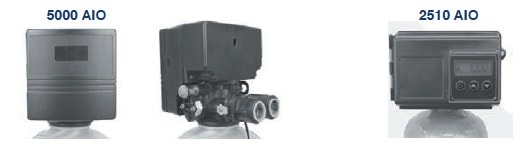

Air Injection Oxidizer Filters (AIO)
• Simplified Iron, Manganese, and Hydrogen Sulfide removal.
• Chemical free, single tank solution.
• Utilizes an air draw cycle to create a captive air pocket above the media bed to enhance oxidation and filtration.
• SXT electronic time clock control
• 4 cycle operation - Backwash, Air Draw, Fast rinse, Service
• BIRM media for Iron and Manganese removal. Refer to media data sheet for application guidelines.
• Catalytic Carbon media for Hydrogen Sulfide removal.
| Air Injection Oxidizer Filters (AIO) | |
| 1.0 CUFT; BIRM; 5800SXT-AIO; RT 9X48 | CFM-1.0-5800SXT-AIO-BIRM |
| 1.5 CUFT; BIRM; 5800SXT-AIO; RT 10X54 | CFM-1.5-5800SXT-AIO-BIRM |
| 2.0 CUFT; BIRM; 5800SXT-AIO; RT 12X52 | CFM-2.0-5800SXT-AIO-BIRM |
| 1.0 CUFT MC1240 CATALYTIC CARB; 5800SXT-AIO; RT 9X48 | CFM-1.0-5800SXT-AIO-MC1240 |
| 1.5 CUFT MC1240 CATALYTIC CARB; 5800SXT-AIO; RT 10X54 | CFM-1.5-5800SXT-AIO-MC1240 |
| 2.0 CUFT MC1240 CATALYTIC CARB; 5800SXT-AIO; RT 12X52 | CFM-2.0-5800SXT-AIO-MC1240 |
| 1.0 CUFT CENTAUR CARBON; 5800SXT-AIO; RT 9X48 | CFM-1.0-5800SXT-AIO-CENTAUR |
| 1.5 CUFT CENTAUR CARBON; 5800SXT-AIO; RT 10X54 | CFM-1.5-5800SXT-AIO-CENTAUR |
| 2.0 CUFT CENTAUR CARBON; 5800SXT-AIO; RT 12X52 | CFM-2.0-5800SXT-AIO-CENTAUR |
| 1.0 CUFT; BIRM; 2510SXT-AIO; RT 9X48 | CFM-1.0-2510AIO-BIRM |
| 1.5 CUFT; BIRM; 2510SXT-AIO; RT 10X54 | CFM-1.5-2510AIO-BIRM |
| 2.0 CUFT; BIRM; 2510SXT-AIO; RT 12X52 | CFM-2.0-2510AIO-BIRM |
| 1.0 CUFT MC1240 CATALYTIC CARB; 2510SXT-AIO; RT 9X48 | CFM-1.0-2510AIO-MC1240 |
| 1.5 CUFT MC1240 CATALYTIC CARB; 2510SXT-AIO; RT 10X54 | CFM-1.5-2510AIO-MC1240 |
| 2.0 CUFT;MC1240 CATALYTIC CARB; 2510SXT-AIO; RT 12X52 | CFM-2.0-2510AIO-MC1240 |
| 1.0 CUFT CENTAUR CARBON; 2510SXT-AIO; RT 9X48 | CFM-1.0-2510AIO-CENTAUR |
| 1.5 CUFT CENTAUR CARBON; 2510SXT-AIO; RT 10X54 | CFM-1.5-2510AIO-CENTAUR |
| 2.0 CUFT CENTAUR CARBON; 2510SXT-AIO; RT 12X52 | CFM-2.0-2510AIO-CENTAUR |
Carbon Filters
• Chlorine reduction
• Taste and odor reduction
• Reduction of chemical by-products of chlorination, pesticides, herbicides and other organic chemicals
• 3 cycle operation - Backwash, Fast rinse, Service
• Carbon works by chemical adsorption, and will need periodic replacement to maintain effectiveness
| Carbon Filters | |
| Description | Part # |
| 1.0CUFT; CARBON; 2510FC; RT 9X48 | CFM-1.0-2510-CARBON |
| 1.5CUFT; CARBON; 2510FC; RT10X54 | CFM-1.5-2510-CARBON |
| 2.0CUFT; CARBON: 2510FC; RT12X52 | CFM-2.0-2510-CARBON |
| 1.0CUFT; CARBON; 5800SXT; RT 9X48 | CFM-1.0-5800SXT-CARBON |
| 1.5CUFT; CARBON; 5800SXT; RT 10X54 | CFM-1.5-5800SXT-CARBON |
| 2.0CUFT; CARBON; 5800SXT; RT 12X52 | CFM-2.0-5800SXT-CARBON |
| 1.0CUFT; CARBON; 5810SXT; RT 9X48 | CFM-1.0-5810SXT-CARBON |
| 1.5CUFT; CARBON; 5810SXT; RT 10X54 | CFM-1.5-5810SXT-CARBON |
| 2.0CUFT; CARBON; 5810SXT; RT 12X52 | CFM-2.0-5810SXT-CARBON |
| 3.0 CUFT; CARBON; 5810SXT; RT14X65 | CFM-3.0-5810SXT-CARBON |
| 1.0CUFT; CARBON; 5810XTR2; RT 9X48 | CFM-1.0-5810XTR2-CARBON |
| 1.5CUFT; CARBON; 5810XTR2; RT 10X54 | CFM-1.5-5810XTR2-CARBON |
| 2.0CUFT; CARBON; 5810XTR2; RT 12X52 | CFM-2.0-5810XTR2-CARBON |
| 3.0 CUFT; CARBON; 5810XTR2; RT14X65 | CFM-3.0-5810XTR2-CARBON |
| 4.0CUFT; 5812SXT; 1.5"; CARBON; RT 16X65 | CFM-4.0-5812SXT-CARBON |
| 5.0CUFT; 5812SXT; 1.5"; CARBON; RT 18X65 | CFM-5.0-5812SXT-CARBON |
| 7.0CUFT; 5812SXT; 1.5"; CARBON; RT 21X62 | CFM-7.0-5812SXT-CARBON |
| 4.0CUFT; 5812XTR2; 1.5"; CARBON; RT 16X65 | CFM-4.0-5812XTR2-CARBON |
| 5.0CUFT; 5812XTR2; 1.5"; CARBON; RT 18X65 | CFM-5.0-5812XTR2-CARBON |
| 7.0CUFT; 5812XTR2; 1.5"; CARBON; RT 21X62 | CFM-7.0-5812XTR2-CARBON |
Nexsand Filters
• Turbidity reduction providing filtration dow to 3-5 micron
• High service flow
• Removal of precipitated material after chemical feed (chlorine, peroxide, etc)
• Durable, long lasting media (typically 5+ years)
• 3 cycle operation - Backwash, Fast rinse, Service
| Nexsand Filters | |
| Description | Part # |
| 1.0CUFT; NEXSAND; 2510FC; RT 9X48 | CFM-1.0-2510-NEXSAND |
| 1.5CUFT; NEXSAND; 2510FC; RT10X54 | CFM-1.5-2510-NEXSAND |
| 2.0CUFT; NEXSAND; 2510FC; RT 12X52 | CFM-2.0-2510-NEXSAND |
| 1.0CUFT; NEXSAND; 5800SXT; RT 9X48 | CFM-1.0-5800SXT-NEXSAND |
| 1.5CUFT; NEXSAND; 5800SXT; RT 10X54 | CFM-1.5-5800SXT-NEXSAND |
| 2.0CUFT; NEXSAND; 5800SXT ;RT12X52 | CFM-2.0-5800SXT-NEXSAND |
| 1.0CUFT;NEXSAND;5800XTR2;RT9X48 | CFM-1.0-5800XTR2-NEXSAND |
| 1.5CUFT; NEXSAND; 5800XTR2; RT 10X54 | CFM-1.5-5800XTR2-NEXSAND |
| 2.0CUFT; NEXSAND; 5800XTR2 ;RT12X52 | CFM-2.0-5800XTR2-NEXSAND |
| 2.0CUFT; NEXSAND; 5810SXT; RT 12X52 | CFM-2.0-5810SXT-NEXSAND |
| 3.0CUFT; NEXSAND; 5810SXT; 32mm; RT 14X65 | CFM-3.0-5810SXT-NEXSAND |
| 4.0CUFT; NEXSAND; 5810SXT; 32mm: RT 16X65 | CFM-4.0-5810SXT-NEXSAND |
| 2.0CUFT;NEXSAND;5810XTR2;RT12X52 | CFM-2.0-5810XTR2-NEXSAND |
| 3.0CUFT; NEXSAND; 5810XTR2; 32mm; RT 14X65 | CFM-3.0-5810XTR2-NEXSAND |
| 4.0CUFT; NEXSAND; 5810XTR2; 32mm; RT 16X65 | CFM-4.0-5810XTR2-NEXSAND |
Greensand Plus Filters
• Removal of Iron, Manganese, Hydrogen Sulfide, Arsenic and Radium
• Effective over a broad pH range
• Batch regeneration
• Includes 10”x16” potassium permanganate feeder tank.
• 5 cycle operation - Backwash, Chem Draw, Fast rinse, Refill, Service
| Greensand Filters | |
| Description | Part # |
| 1.0CUFT; GREENSAND; 2510CC; RT9X48 | CFM-1.0-2510-GRNSAND |
| 1.5CUFT; GREENSAND; 2510CC; RT10X54 | CFM-1.5-2510-GRNSAND |
| 1.0CUFT; GRNSAND; 5800SXT; RT9X48 | CFM-1.0-5800SXT-GRNSAND |
| 1.5CUFT; GRNSAND; 5800SXT RT10X54 | CFM-1.5-5800SXT-GRNSAND |
| 1.5CUFT; GREENSAND; 5810SXT; RT10X54 | CFM-1.5-5810SXT-GRNSAND |
| 2.0CUFT; GREENSAND; 5810SXT; RT12X52 | CFM-2.0-5810SXT-GRNSAND |
Birm Filters & Air Injection Parts
• Iron and Manganese removal (requires presence of dissolved oxygen in water)
• Chemical free operation
• Typically used with air injector (installed ahead of well pressure tank) and air contact tank with off gas vent.
• Not suitable for use with chlorine or other chemical feed systems.
| Greensand Filters | |
| Description | Part # |
| 1.0CUFT; BIRM; 2510FC; RT9X48 | CFM-1.0-2510-BIRM |
| 1.5CUFT; BIRM; 2510FC; RT10X54 | CFM-1.5-2510-BIRM |
| 2.0CUFT; BIRM; 2510FC; RT12X52 | CFM-2.0-2510-BIRM |
| 1.0CUFT; BIRM; 5800SXT; RT 9X48 | CFM-1.0-5800SXT-BIRM |
| 1.5CUFT; BIRM; 5800SXT; RT 10X54 | CFM-1.5-5800SXT-BIRM |
| 2.0CUFT; BIRM; 5800SXT; RT 12X52 | CFM-2.0-5800SXT-BIRM |
| 1.0CUFT; BIRM; 5810XTR2; RT 9X48 | CFM-1.0-5810XTR2-BIRM |
| 1.5CUFT; BIRM; 5810XTR2; RT 10X54 | CFM-1.5-5810XTR2-BIRM |
| 2.0CUFT; BIRM; 5810XTR2; RT 12X52 | CFM-2.0-5810XTR2-BIRM |
| 3.0CUFT; BIRM; 5810XTR2; RT 14X65 | CFM-3.0-5810XTR2-BIRM |
| Description | Part # |
| IRON REMOVER MICRONIZER | CH3929-5 |
| CT-40 RETENTION TANK, 16X53 | 31608 |
| AIR CONTROL ASSY CT-40 (FITS NEW QC TANKS ONLY) | 20289 |
