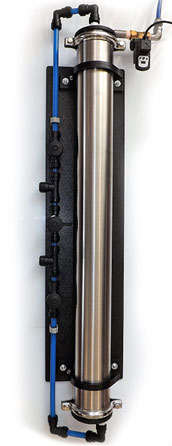

Ultra Filtration System
Features:
•Intelligent Self Cleaning System Using a Solenoid Valve to Drain for Selectable Time and Duration
• 3-PP True Union Ball Valve By-Pass Configuration to Provide Complete Redundancy
• Ultra Filter Membrane uses Patented Multi-Bore Technology to Provide Consistent Product
• NSF Certified 61 on all Materials of Construction; NSF/ANSI 419 Drinking Water Equipment Performance-Filtration
• 0.03UM Membrane for Certified Removal of Cryptosporidium and Virus Reduction
Ultra Filtration Operating Parameters:
•Pressure Requirements: Minimum 40 PSI; Maximum 80 PSI
• Temperatures Requirements: Minimum 5° C; Maximum 35° C
• Solenoid Electrical Requirements: 110V, 1 Phase, Meets CSA Standards
• Membrane Life Expectancy: 1-2 Years Before Replacement is Needed
(HS-UF440)
| High Springs Ultra Filtration System | |
| Description | Part # |
| 3/4" PORTING 4x40 MEMBRANE W/ AUTO FLUSH | HS-UF440 |
| 4x40 MEMBRANE REPLACEMENT | HS-UF440 MEMBRANE |
